Spectrum™ Cameras

Rugged, Reliable Visual Inspection Cameras.

When inspections demand the best possible picture quality, Spectrum™ cameras deliver. Built for harsh industrial environments, they pair integrated LED lighting (and optional laser lines) with smooth pan/tilt/zoom control and a compact, submersible design. Use Spectrum as a drop camera, on poles with STIK deployment, or mounted to VersaTrax crawlers and ICON™ controllers for a unified workflow.

  • Depth Rating (standard): 60 m (200 ft) — optional 150 m / 300 m variants
  • Resolutions: SD 420 TVL (S45), SD 720 TVL (S90), HD 1080p (S120)
  • Zoom: up to 360× (30× optical + 12× digital) depending on model
  • Tethers: 30 m standard; 100 m and 300 m options (controllerdependent)
  • Controllers & Software: ICON™ (IC100/IC500/HighPower) for control, recording, tagging, automation

Key Features & Capabilities

High fidelity imaging

From confined space clarity on the 45 mm PT to true 1080p HD on the 120 mm PTZ, with focus control and excellent low light performance.

Industrial grade, submersible build

Engineered for water, dust, and splash zone use with 60m standard depth rating.

Integrated lighting & lasers

Variable LED lighting on all models; Spectrum 90 & 120 include parallel laser lines for on screen size estimation.

Smooth PT/ PTZ control

360° continuous pan and wide tilt ranges with low latency control for precise steering and framing.

ICON™ workflow

Record, snapshot, tag, overlay, automate, and export—consistent UI across all Spectrum setups.

Flexible deployment

Pole/Drop (STIK accessory), crawler mounted, or tripod setups; optional long tethers and reels with slip rings.

Welcome to a world of modular robotics designed for your remote industrial application

Industrial Robotic Applications
OnSpec Cleaning Robot

Eddyfi Technologies is an innovation leader in modular, mobile, industrial robotic systems with a global reputation for reliability, efficiency, quality, and cost effectiveness. We create technology that enables people to perform tasks that they could not otherwise do, in places they could not otherwise go. OnSpec Robotics, or custom robots built to your precise needs, enable access to areas that are too dangerous or remote for direct human intervention, providing time and cost-efficient operations.

Do you ever wish you could be in several places at once? Eddyfi Technologies has been doing it for years with our unique, multi-mission modular technology. The art and science of OnSpec Robotics is a very human endeavor taking you beyond what is humanly possible. Our remotely operated systems bridge the gap between you and the physical world, helping you reach the unreachable, see the unseen, and go safely beyond your physical limitations to perform the work left otherwise undone.

Whichever way you look, our bespoke industrial robots have your remote operation challenges covered. When the job calls for new ideas and fresh approaches, we are OnSpec. Whether it’s about integrating a unique OEM module, adapting proven technology for atypical conditions, or designing a custom solution from scratch, Eddyfi Technologies’ robotic experts will sit down with you to fully understand the exact nature of the problem, before scoping the optimal solution for your needs.

We recognize that choosing the right robotic technology for your business is a complex decision – one that goes beyond quality, reliability, and craftsmanship. We know it’s about identifying the systems best adapted for your precise needs. You require innovative solutions? It’s up to us to understand your questions and provide clear, relevant, actionable answers.

Model Comparison — Choose the right Spectrum camera

Specification

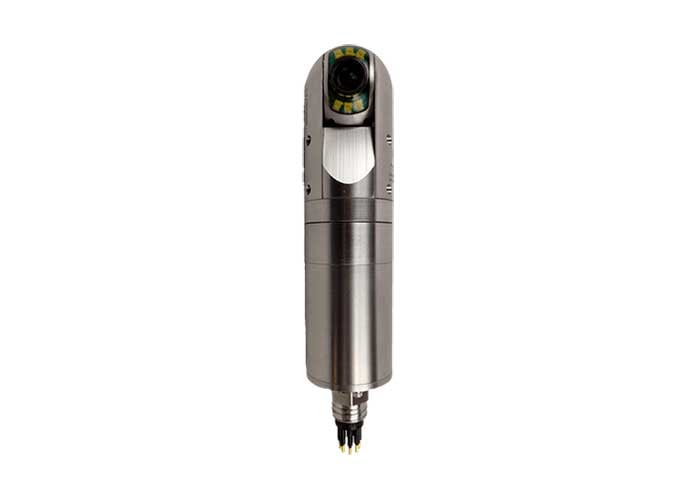

Spectrum 45 (PT)

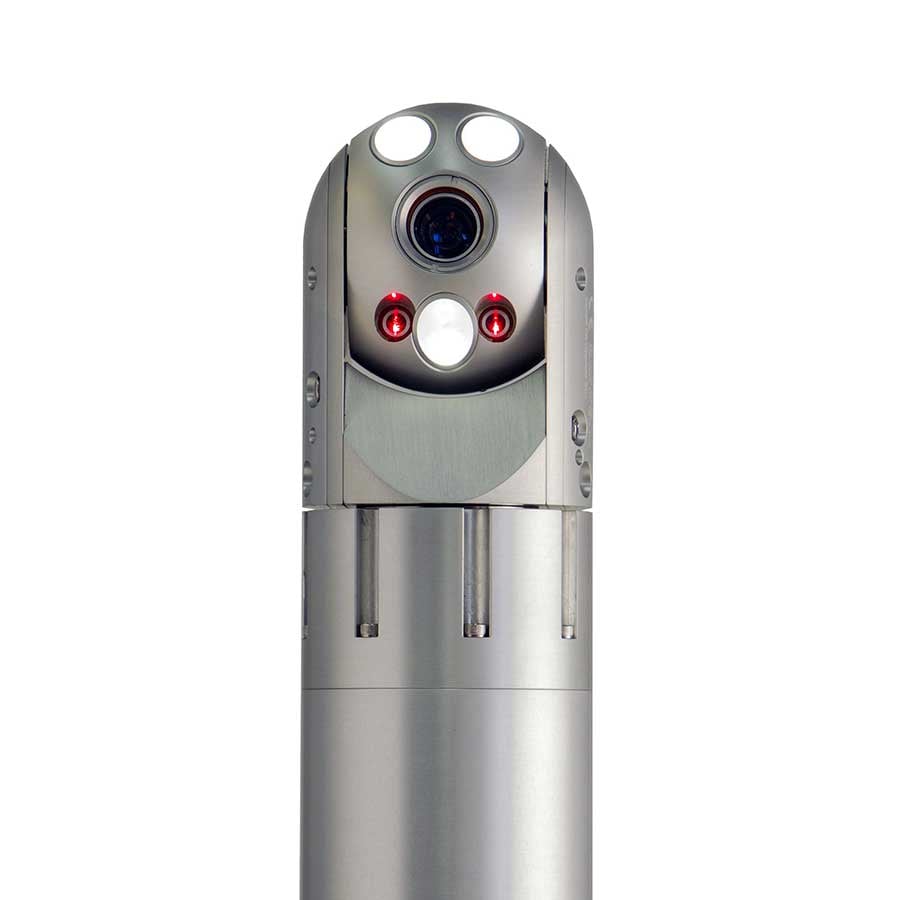

Spectrum 90 (PTZ)

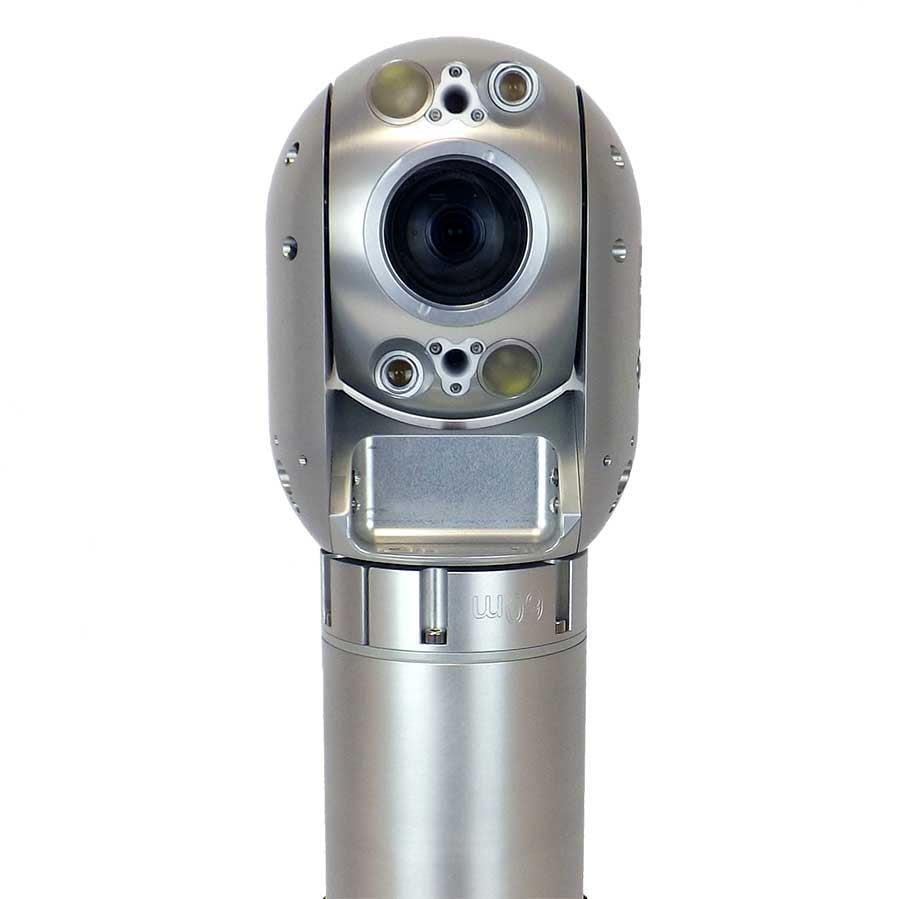

Spectrum 120 (HD PTZ)
Diameter
45 mm (1.75 in)
90 mm (3.5 in)
120 mm (4.75 in)
Length
163 mm (6.4 in)
273 mm (10.8 in) — 60 m depth

298 mm (11.7 in) — 300 m depth
332 mm (13.1 in) — 60 m depth

357 mm (14 in) — 300 m depth
Weight (Aluminum)
0.8 kg (1.5 lb)
2.8 kg (6 lb)
3.4 kg (7.5 lb)
Materials
Aluminum (SS optional)
Aluminum (SS optional)
Aluminum (SS optional)
Depth Rating
60 m (200 ft) — optional 150 m (500 ft)
60 m (200 ft) — optional 300 m (1000 ft)
60 m (200 ft) — optional 300 m (1000 ft)
Tether Length Options
30 m (std); 100 m; 300 m
30 m (std); 100 m; 300 m
30 m (std); 100 m; >100 m on request
Operating Temperature
0–50 °C (32–122 °F)
0–50 °C (32–122 °F)
0–50 °C (32–122 °F)
Resolution
420 TVL (SD)
720 TVL (SD)
1080p (HD)
Minimum Illumination
1.0 Lux
0.5 Lux
1.4 Lux
Zoom
120× (10× optical + 12× digital)

360× (30× optical + 12× digital)
120× (10× optical + 12× digital)

360× (30× optical + 12× digital)
Pan
360° continuous @ 18°/s
360° continuous @ 26°/s
360° continuous @ 26°/s
Tilt
280° @ 35°/s
260° @ 7°/s
280° @ 9°/s
Focus
Manual
Auto / Manual
Auto / Manual
Depth of Field
10 mm (0.4 in) to ∞
10 mm (0.4 in) to ∞
10 mm (0.4 in) to ∞
Lighting
Variable LED
Variable LED
Variable LED
Laser Lines
2× parallel
2× parallel

†300 m tether requires a compatible controller configuration.

Accessories, Industries & Support

Modular add-ons, proven industry use cases, and global support services for seamless deployment.

Accessories & Deployment

  • STIK system (optional): Quick clamp pole kit for tank/vessel access; adjustable for 17–36 in hatches; add pole segments for deeper assets.
  • Portable tether systems: 30 m and 100 m reels with integrated slip ring; longer lengths available; optional tether encoder.
  • Controllers: IC100 portable controller for camera systems; IC500/HighPower for extended tethers or multisystem setups.

Target Industries & Applications

  • Storage tanks, pressure vessels, FPSO tanks
  • Pipelines and penstocks; caissons and risers
  • Marine & offshore (hulls, splash zone)
  • Confined space video inspection and drop camera systems
  • Mining shafts and heavy industry assets

Service & Support

  • ICON™ downloads, manuals, and diagnostics
  • Training: Spectrum Camera Product Training (Eddyfi Academy)
  • Global service: Spares, repairs, and calibration

Frequently Asked Questions

Which camera should I choose?
Pick Spectrum 45 for the tightest access (2 in entries), Spectrum 90 for versatile SD PTZ with laser sizing, and Spectrum 120 for true 1080p HD imaging and advanced optics.
Can I operate underwater?
Yes. All models are submersible to 60 m standard, with 150 m / 300 m variants available.
Do I need a specific controller?
Use IC100 for camera only systems up to 100 m tethers; IC500 or High Power for longer tethers or multidevice rigs.
Are lasers available for size estimation?
Yes. Spectrum 90 and Spectrum 120 include parallel laser lines for onscreen measurements.
Ready to see more?
Let’s match the right Spectrum camera to your access constraints, lighting needs, and data requirements.
